TECHNOLOGY
* Highly Value-Added 3D Effect Printing Solution developped and Assembled in Korea
* Creates Visual and Tactual 3D Effects
* Optimized for Mass-Customization (Small Quantity of Various Kinds) UV Varnish and Foil
HIDDEN CHAMPION BEATUS PRINTER
As a specialized printer developer and manufacturer based in Korea,
we launche digital spot varnish and foil stamp printer with our own technology.
we launche digital spot varnish and foil stamp printer with our own technology.
-

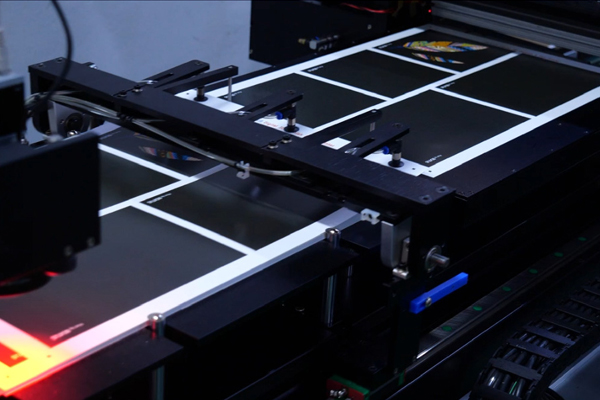

Auto Feeding System
- Max 2,000 PCs loading on Feeder (200g Paper)
- Self-Developped Paper Transferring Belt Preventing Paper from being Skewed
- Printing Speed 3 Sec. from Feeder to Foil
-
Head and Drive Mechanism

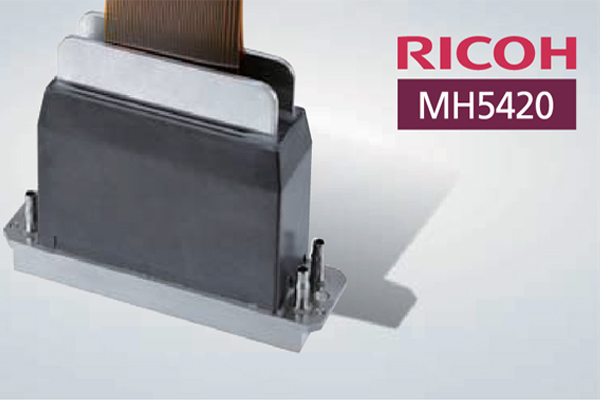

- Ricoh Gen5(MH5420) Head / printing area 54mm Per Stroke
- Single-Pass Type with 6 Heads
- Self Developped Software & Program Embedded Drive Mechanism

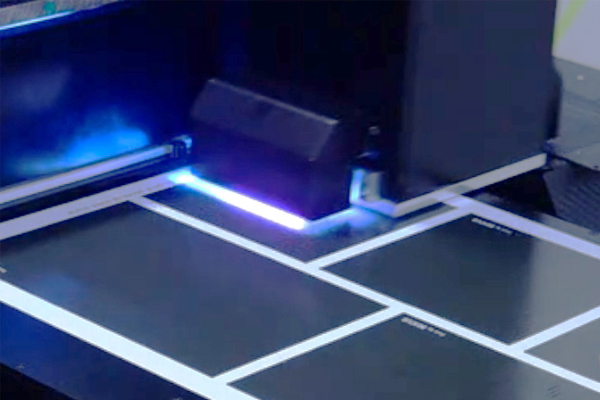

- Placing Inkjet Head and LED Light Hardening Device in Close Makes UV Ink Hardening Quickly and Minimizing UV Ink Running while Injection Makes Perfect Printing result in the Edge of Text and Image
- Foil can resist Bending and Foiling up to 5pt Text size
-

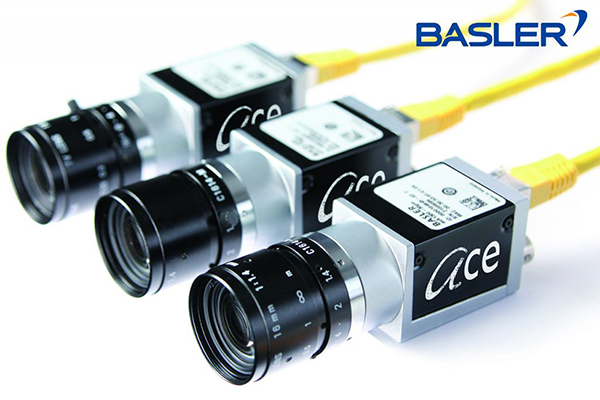

Vision Camera (Algorithm Software System)
- Perfect UV Varnish and Foil on the Printed Sheets with the Unique Technology in Beatus
- Combined Vision Camera System and Algorithm Software System Developped by Beatus
- Shoot the OPA marks of each Sheet and Calculate Magnification and Location of the Objects to Print
- Wide Scope of Vision Camera Cognition(15mm around OPA Mark) shorten Job Change Time as No Need to Adjust Camera Position for Continuing similar size sheet Printing
-

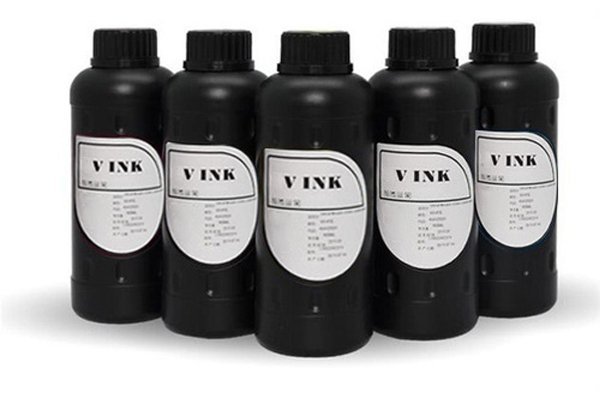

Varnish Inks
- AFV6 uses Exclusive Varnish Ink developped by Beatus
- 2L Container Refill Type with Shortage Warning Function
-
Powerful Head Protection and Management
- Enhanced Ink Injection Function enables Ink Consumption to be Reduced Drastically
- Head Wiper Removes the Remaining Ink from the Surface in order to Keep the Heads in the Optimal Condition
- Vacuum Capping System Prevents Heads Clogging by Blocking Air and Light from Outside and No Need to Clean Heads when Re-Operating. Also There is No Head Clogging during about 15 Days of Inoperative Environment.
-

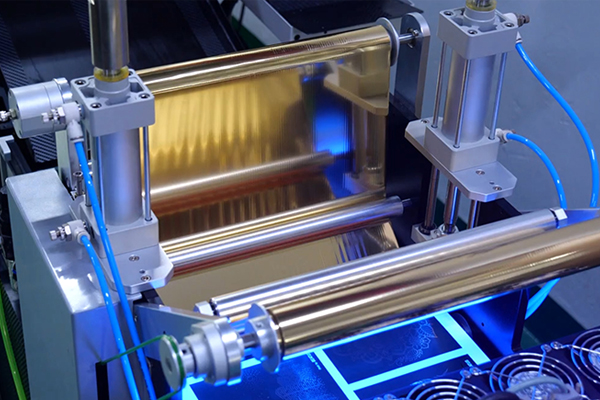

FOIL SYSTEM
- Foil is Developped for Beatus Exclusive
- Foil consumption saving system which consume foil only for the stamping length
- Cold stamping which does not create ill-affect on printing materials
- Various color of foil can be used(gold, silver, red, blue, green)
-
RIP Software
- BEATUS Self-Developped RIP Software
- Spot Varnish(Coating) Height Adjustable from 30µ to 80µ according to DPI
-

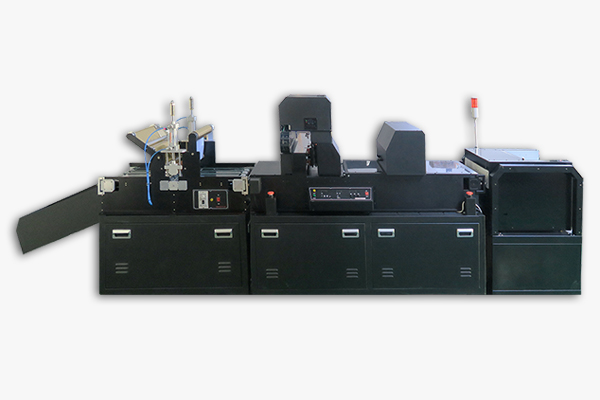

Compact Size with 4 Seperate Parts
- Auto Paper Feeder + Paper Vacuum Suction + Main Body(Vision Camera + Printer + Head Protector) + Foil Press enables Easy Moving and Assembling Total Size after Assembled : L3840mm x W1100mm x H1300mm
- Power Supply AC 220V Single-Phase
- Comparatively Small Space needed for Installation
